2026 How to Choose the Right CT Current Transformer for Your Needs?
Choosing the right CT current transformer can be daunting. Experts emphasize the importance of selection for performance and safety. John Smith, a leading engineer in the electrical industry, once remarked, “Selecting a CT current transformer correctly ensures reliability and efficiency in your electrical system.”
Consider the application's specific needs. Accuracy, burden rating, and voltage levels all play vital roles. A poorly chosen CT current transformer can lead to inaccuracies, affecting overall system performance. Small details, like load requirements, can significantly influence your choice.
Many overlook these aspects, leading to miscalculations later. Understanding the importance of each factor is crucial. The right decision impacts efficiency and safety. Reflecting on your specific use case will help clarify your selection process. A clear focus on your needs ensures better outcomes in the long run.
Understanding the Basics of CT Current Transformers
Current transformers (CTs) are crucial for accurate measurement of electrical currents. They offer isolation and protection in high-voltage systems. Understanding the fundamentals of CTs can significantly impact your selection process. According to the International Electrotechnical Commission, the global market for CTs is expected to grow at an annual rate of 6% from 2023 to 2028. This growth reflects their importance in various applications, from electrical grids to renewable energy systems.

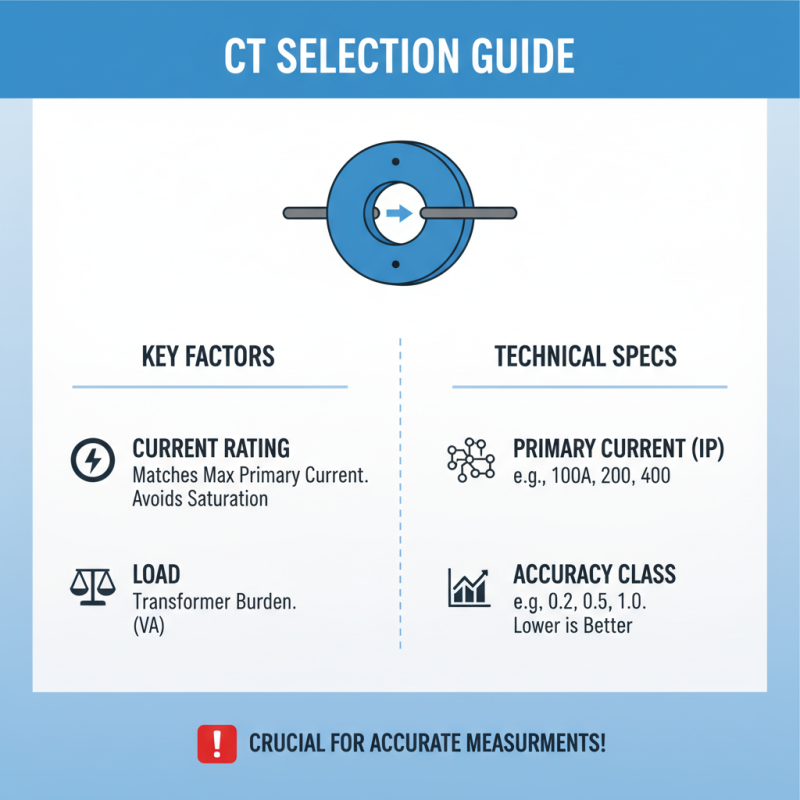

When choosing a CT, consider its specifications. The ratio, accuracy class, and burden are vital. The accuracy class determines how well the CT will perform under different loads. For example, a 0.5 class CT provides high precision for metering applications. However, if the wrong ratio is chosen, you could end up overloading your device. Such miscalculations can lead to incorrect readings and potential safety hazards.
The burden is equally important. It refers to the load connected to the CT secondary. A mismatch can cause significant errors. Ideally, the burden should align with the rated output. It is also crucial to evaluate the installation environment. Some transformers are not ideal for extreme temperatures. Each choice dictates performance and safety outcomes. Managing these factors requires careful consideration. Understanding these details can prevent costly mistakes.
Understanding the Basics of CT Current Transformers
This bar chart illustrates the key specifications to consider when selecting a CT current transformer. The values represent a typical set of specifications found in the market, helping users understand various factors such as accuracy class, burden capacity, and operational current levels.
Identifying Your Application Requirements for CT Transformers
When selecting a current transformer (CT), understanding your application requirements is crucial. Different applications have distinct needs for accuracy and performance. The IEEE standards indicate that a typical accuracy class for general measurements can vary from 0.1% to 2%. For protective applications, accuracy may not be as critical, but ensuring reliable operation remains vital.
Consider the specific environment where the CT will be used. The temperature range is essential. Many CTs operate effectively between -20°C and +55°C, but extreme temperature environments may require specialized transformers. Additionally, assess your load's current range. A CT should adequately handle peak currents without saturation. The saturation point is a common point of failure and can lead to significant measurement errors.

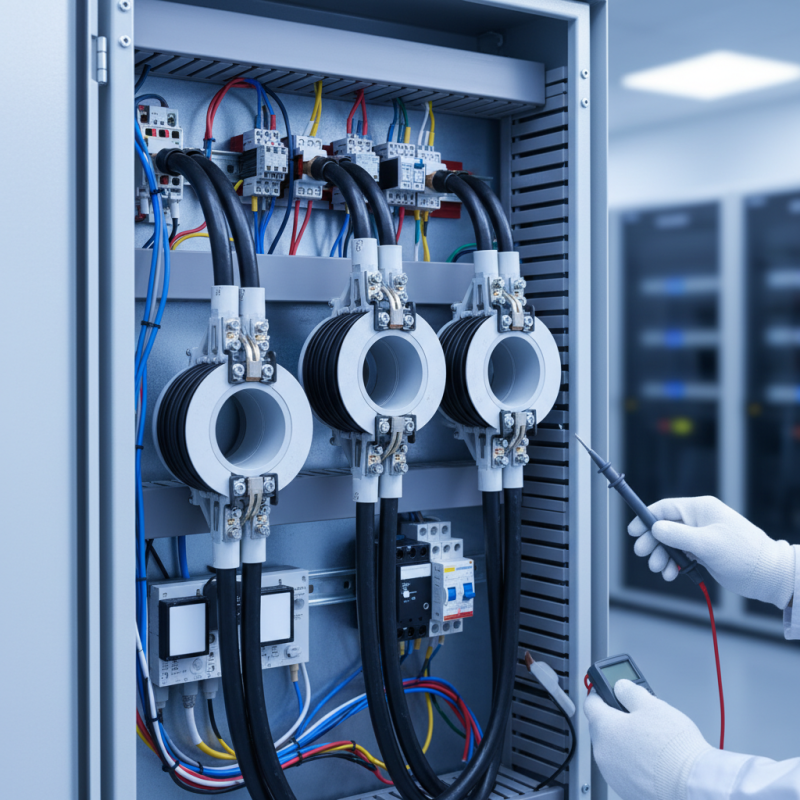

Beyond technical specifications, think about installation and maintenance. Some transformers require additional circuitry for optimal performance. Easy access for maintenance can affect long-term reliability. Industry reports suggest that improper installation can lead to up to 30% of CT failures. This highlights the importance of knowledgeable personnel during setup and ongoing assessment. Balancing these factors can lead to better operational efficiency and reduced costs.
Comparing Different Types of CT Current Transformers Available

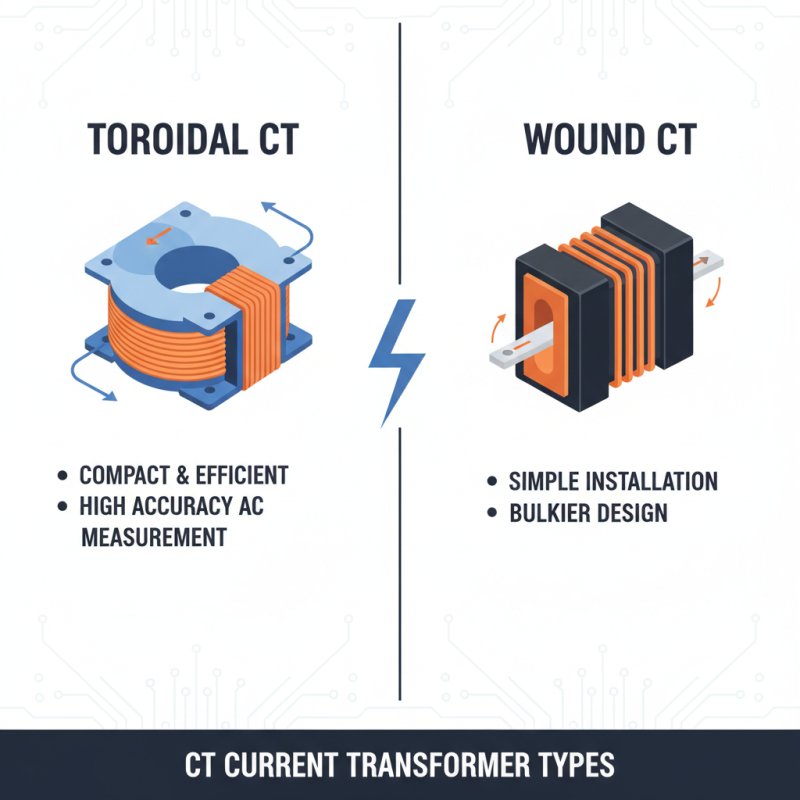

When it comes to choosing a CT current transformer, understanding the types available is crucial. There are various designs, including toroidal and wound types. Toroidal transformers are compact and efficient. They measure AC current with high accuracy. Wound transformers offer simplicity in installation. However, they may be bulkier and require more space.
Additionally, you have to consider the application. For metering, accuracy is paramount. Wound transformers generally provide higher precision. But if space is limited, a toroidal design might be better. Remember, each type has its own characteristics. This can lead to confusion during selection.
It's also important to reflect on your specific needs. Do you need a wide measurement range or high safety standards? A mismatch can lead to unreliable data. Testing different models might reveal unexpected limitations. These nuances will impact your operations, so take them into account.
Making an Informed Decision: Cost vs. Performance Considerations
Choosing the right current transformer (CT) can be tricky. It's essential to balance cost and performance. Many buyers focus solely on price. However, this approach may lead to poor decisions. An inexpensive CT may lack necessary features or accuracy. In the long run, this could increase operational costs.
Performance must be evaluated alongside price. For instance, a more expensive model might offer better durability and efficiency. This is crucial in high-demand environments. Consider specific application needs. A CT that performs well in one scenario may struggle in another. Make sure to analyze each option thoroughly.
Moreover, sometimes budgets constrain choices. It's essential to weigh initial investment against potential savings. A higher upfront cost may lead to reduced maintenance and longer lifespan. Balance these factors carefully to maximize overall value. It’s not always easy to determine what will work best. Testing different options may provide clarity.
2026 How to Choose the Right CT Current Transformer for Your Needs?
| Model |
Rated Current (A) |
Accuracy Class |
Burden (VA) |
Cost (USD) |
Temperature Range (°C) |
| CT-100A |
100 |
0.5 |
5 |
150 |
-40 to 85 |
| CT-200A |
200 |
0.5 |
10 |
200 |
-20 to 70 |
| CT-400A |
400 |
0.2 |
15 |
300 |
-30 to 75 |
| CT-600A |
600 |
0.5 |
20 |
350 |
-10 to 60 |
| CT-1000A |
1000 |
0.2 |
25 |
500 |
-40 to 80 |
